Vessel

class SpaceCenter.Vessel

These objects are used to interact with vessels in KSP. This includes getting orbital and flight data, manipulating control inputs and managing resources. Created using SpaceCenter.active_vessel or SpaceCenter.vessels.

name: string

The name of the vessel.

Attribute:

Can be read or written

Return type:

string

type: SpaceCenter.VesselType

The type of the vessel.

Attribute:

Can be read or written

Return type:

SpaceCenter.VesselType

situation: SpaceCenter.VesselSituation

The situation the vessel is in.

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.VesselSituation

recoverable: boolean

Whether the vessel is recoverable.

Attribute:

Read-only, cannot be set

Return type:

boolean

recover()

Recover the vessel.

met: number

The mission elapsed time in seconds.

Attribute:

Read-only, cannot be set

Return type:

number

biome: string

The name of the biome the vessel is currently in.

Attribute:

Read-only, cannot be set

Return type:

string

flight([reference_frame = None])

Returns a SpaceCenter.Vessel.flight() object that can be used to get flight telemetry for the vessel, in the specified reference frame.

Parameters:

reference_frame (SpaceCenter.ReferenceFrame) – Reference frame. Defaults to the vessel’s surface reference frame (SpaceCenter.Vessel.surface_reference_frame).

Return type:

SpaceCenter.Flight

Note

When this is called with no arguments, the vessel’s surface reference frame is used. This reference frame moves with the vessel, therefore velocities and speeds returned by the flight object will be zero. See the reference frames tutorial for examples of getting the orbital and surface speeds of a vessel.

orbit: SpaceCenter.Orbit

The current orbit of the vessel.

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.Orbit

control: SpaceCenter.Control

Returns a SpaceCenter.Vessel.control object that can be used to manipulate the vessel’s control inputs. For example, its pitch/yaw/roll controls, RCS and thrust.

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.Control

comms: SpaceCenter.Comms

Returns a SpaceCenter.Vessel.comms object that can be used to interact with CommNet for this vessel.

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.Comms

auto_pilot: SpaceCenter.AutoPilot

An SpaceCenter.Vessel.auto_pilot object, that can be used to perform simple auto-piloting of the vessel.

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.AutoPilot

crew_capacity: number

The number of crew that can occupy the vessel.

Attribute:

Read-only, cannot be set

Return type:

number

crew_count: number

The number of crew that are occupying the vessel.

Attribute:

Read-only, cannot be set

Return type:

number

crew: List

The crew in the vessel.

Attribute:

Read-only, cannot be set

Return type:

List

resources: SpaceCenter.Resources

A SpaceCenter.Vessel.resources object, that can used to get information about resources stored in the vessel.

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.Resources

resources_in_decouple_stage(stage[, cumulative = True])

Returns a SpaceCenter.Vessel.resources object, that can used to get information about resources stored in a given stage.

Parameters:

• stage (number) – Get resources for parts that are decoupled in this stage.

• cumulative (boolean) – When False, returns the resources for parts decoupled in just the given stage. When True returns the resources decoupled in the given stage and all subsequent stages combined.

Return type:

SpaceCenter.Resources

Note

For details on stage numbering, see the discussion on Staging.

parts: SpaceCenter.Parts

A SpaceCenter.Parts object, that can used to interact with the parts that make up this vessel.

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.Parts

mass: number

The total mass of the vessel, including resources, in kg.

Attribute:

Read-only, cannot be set

Return type:

number

dry_mass: number

The total mass of the vessel, excluding resources, in kg.

Attribute:

Read-only, cannot be set

Return type:

number

thrust: number

The total thrust currently being produced by the vessel’s engines, in Newtons. This is computed by summing SpaceCenter.Engine.thrust for every engine in the vessel.

Attribute:

Read-only, cannot be set

Return type:

number

available_thrust: number

Gets the total available thrust that can be produced by the vessel’s active engines, in Newtons. This is computed by summing SpaceCenter.Engine.available_thrust for every active engine in the vessel.

Attribute:

Read-only, cannot be set

Return type:

number

available_thrust_at(pressure)

Gets the total available thrust that can be produced by the vessel’s active engines, in Newtons. This is computed by summing SpaceCenter.Engine.available_thrust_at() for every active engine in the vessel. Takes the given pressure into account.

Parameters:

pressure (number) – Atmospheric pressure in atmospheres

Return type:

number

max_thrust: number

The total maximum thrust that can be produced by the vessel’s active engines, in Newtons. This is computed by summing SpaceCenter.Engine.max_thrust for every active engine.

Attribute:

Read-only, cannot be set

Return type:

number

max_thrust_at(pressure)

The total maximum thrust that can be produced by the vessel’s active engines, in Newtons. This is computed by summing SpaceCenter.Engine.max_thrust_at() for every active engine. Takes the given pressure into account.

Parameters:

pressure (number) – Atmospheric pressure in atmospheres

Return type:

number

max_vacuum_thrust: number

The total maximum thrust that can be produced by the vessel’s active engines when the vessel is in a vacuum, in Newtons. This is computed by summing SpaceCenter.Engine.max_vacuum_thrust for every active engine.

Attribute:

Read-only, cannot be set

Return type:

number

specific_impulse: number

The combined specific impulse of all active engines, in seconds. This is computed using the formula described here.

Attribute:

Read-only, cannot be set

Return type:

number

specific_impulse_at(pressure)

The combined specific impulse of all active engines, in seconds. This is computed using the formula described here. Takes the given pressure into account.

Parameters:

pressure (number) – Atmospheric pressure in atmospheres

Return type:

number

vacuum_specific_impulse: number

The combined vacuum specific impulse of all active engines, in seconds. This is computed using the formula described here.

Attribute:

Read-only, cannot be set

Return type:

number

kerbin_sea_level_specific_impulse: number

The combined specific impulse of all active engines at sea level on Kerbin, in seconds. This is computed using the formula described here.

Attribute:

Read-only, cannot be set

Return type:

number

moment_of_inertia: Tuple

The moment of inertia of the vessel around its center of mass in \(kg.m^2\). The inertia values in the returned 3-tuple are around the pitch, roll and yaw directions respectively. This corresponds to the vessels reference frame (SpaceCenter.Vessel.reference_frame).

Attribute:

Read-only, cannot be set

Return type:

Tuple

inertia_tensor: List

The inertia tensor of the vessel around its center of mass, in the vessels reference frame (SpaceCenter.Vessel.reference_frame). Returns the 3x3 matrix as a list of elements, in row-major order.

Attribute:

Read-only, cannot be set

Return type:

List

available_torque: Tuple

The maximum torque that the vessel generates. Includes contributions from reaction wheels, RCS, gimballed engines and aerodynamic control surfaces. Returns the torques in \(N.m\) around each of the coordinate axes of the vessels reference frame (SpaceCenter.Vessel.reference_frame). These axes are equivalent to the pitch, roll and yaw axes of the vessel.

Attribute:

Read-only, cannot be set

Return type:

Tuple

available_reaction_wheel_torque: Tuple

The maximum torque that the currently active and powered reaction wheels can generate. Returns the torques in \(N.m\) around each of the coordinate axes of the vessels reference frame (SpaceCenter.Vessel.reference_frame). These axes are equivalent to the pitch, roll and yaw axes of the vessel.

Attribute:

Read-only, cannot be set

Return type:

Tuple

available_rcs_torque: Tuple

The maximum torque that the currently active RCS thrusters can generate. Returns the torques in \(N.m\) around each of the coordinate axes of the vessels reference frame (SpaceCenter.Vessel.reference_frame). These axes are equivalent to the pitch, roll and yaw axes of the vessel.

Attribute:

Read-only, cannot be set

Return type:

Tuple

available_rcs_force: Tuple

The maximum force that the currently active RCS thrusters can generate. Returns the forces in \(N\) along each of the coordinate axes of the vessels reference frame (SpaceCenter.Vessel.reference_frame). These axes are equivalent to the right, forward and bottom directions of the vessel.

Attribute:

Read-only, cannot be set

Return type:

Tuple

available_engine_torque: Tuple

The maximum torque that the currently active and gimballed engines can generate. Returns the torques in \(N.m\) around each of the coordinate axes of the vessels reference frame (SpaceCenter.Vessel.reference_frame). These axes are equivalent to the pitch, roll and yaw axes of the vessel.

Attribute:

Read-only, cannot be set

Return type:

Tuple

available_control_surface_torque: Tuple

The maximum torque that the aerodynamic control surfaces can generate. Returns the torques in \(N.m\) around each of the coordinate axes of the vessels reference frame (SpaceCenter.Vessel.reference_frame). These axes are equivalent to the pitch, roll and yaw axes of the vessel.

Attribute:

Read-only, cannot be set

Return type:

Tuple

available_other_torque: Tuple

The maximum torque that parts (excluding reaction wheels, gimballed engines, RCS and control surfaces) can generate. Returns the torques in \(N.m\) around each of the coordinate axes of the vessels reference frame (SpaceCenter.Vessel.reference_frame). These axes are equivalent to the pitch, roll and yaw axes of the vessel.

Attribute:

Read-only, cannot be set

Return type:

Tuple

reference_frame: SpaceCenter.ReferenceFrame

The reference frame that is fixed relative to the vessel, and orientated with the vessel.

• The origin is at the center of mass of the vessel.

• The axes rotate with the vessel.

• The x-axis points out to the right of the vessel.

• The y-axis points in the forward direction of the vessel.

• The z-axis points out of the bottom off the vessel.

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.ReferenceFrame

Vessel reference frame origin and axes for the Aeris 3A aircraft

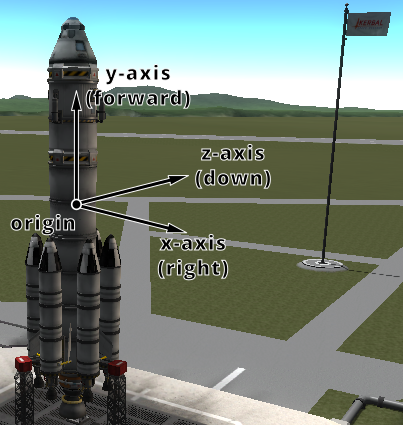

Vessel reference frame origin and axes for the Kerbal-X rocket

orbital_reference_frame: SpaceCenter.ReferenceFrame

The reference frame that is fixed relative to the vessel, and orientated with the vessels orbital prograde/normal/radial directions.

• The origin is at the center of mass of the vessel.

• The axes rotate with the orbital prograde/normal/radial directions.

• The x-axis points in the orbital anti-radial direction.

• The y-axis points in the orbital prograde direction.

• The z-axis points in the orbital normal direction.

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.ReferenceFrame

Note

Be careful not to confuse this with ‘orbit’ mode on the navball.

Vessel orbital reference frame origin and axes

surface_reference_frame: SpaceCenter.ReferenceFrame

The reference frame that is fixed relative to the vessel, and orientated with the surface of the body being orbited.

• The origin is at the center of mass of the vessel.

• The axes rotate with the north and up directions on the surface of the body.

• The x-axis points in the zenith direction (upwards, normal to the body being orbited, from the center of the body towards the center of mass of the vessel).

• The y-axis points northwards towards the astronomical horizon (north, and tangential to the surface of the body – the direction in which a compass would point when on the surface).

• The z-axis points eastwards towards the astronomical horizon (east, and tangential to the surface of the body – east on a compass when on the surface).

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.ReferenceFrame

Note

Be careful not to confuse this with ‘surface’ mode on the navball.

Vessel surface reference frame origin and axes

surface_velocity_reference_frame: SpaceCenter.ReferenceFrame

The reference frame that is fixed relative to the vessel, and orientated with the velocity vector of the vessel relative to the surface of the body being orbited.

• The origin is at the center of mass of the vessel.

• The axes rotate with the vessel’s velocity vector.

• The y-axis points in the direction of the vessel’s velocity vector, relative to the surface of the body being orbited.

• The z-axis is in the plane of the astronomical horizon.

• The x-axis is orthogonal to the other two axes.

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.ReferenceFrame

Vessel surface velocity reference frame origin and axes

position(reference_frame)

The position of the center of mass of the vessel, in the given reference frame.

Parameters:

reference_frame (SpaceCenter.ReferenceFrame) – The reference frame that the returned position vector is in.

Returns:

The position as a vector.

Return type:

Tuple

bounding_box(reference_frame)

The axis-aligned bounding box of the vessel in the given reference frame.

Parameters:

reference_frame (SpaceCenter.ReferenceFrame) – The reference frame that the returned position vectors are in.

Returns:

The positions of the minimum and maximum vertices of the box, as position vectors.

Return type:

Tuple

velocity(reference_frame)

The velocity of the center of mass of the vessel, in the given reference frame.

Parameters:

reference_frame (SpaceCenter.ReferenceFrame) – The reference frame that the returned velocity vector is in.

Returns:

The velocity as a vector. The vector points in the direction of travel, and its magnitude is the speed of the body in meters per second.

Return type:

Tuple

rotation(reference_frame)

The rotation of the vessel, in the given reference frame.

Parameters:

reference_frame (SpaceCenter.ReferenceFrame) – The reference frame that the returned rotation is in.

Returns:

The rotation as a quaternion of the form \((x, y, z, w)\).

Return type:

Tuple

direction(reference_frame)

The direction in which the vessel is pointing, in the given reference frame.

Parameters:

reference_frame (SpaceCenter.ReferenceFrame) – The reference frame that the returned direction is in.

Returns:

The direction as a unit vector.

Return type:

Tuple

angular_velocity(reference_frame)

The angular velocity of the vessel, in the given reference frame.

Parameters:

reference_frame (SpaceCenter.ReferenceFrame) – The reference frame the returned angular velocity is in.

Returns:

The angular velocity as a vector. The magnitude of the vector is the rotational speed of the vessel, in radians per second. The direction of the vector indicates the axis of rotation, using the right-hand rule.

Return type:

Tuple

class SpaceCenter.VesselType

The type of a vessel. See SpaceCenter.Vessel.type.

base

Base.

debris

Debris.

lander

Lander.

plane

Plane.

probe

Probe.

relay

Relay.

rover

Rover.

ship

Ship.

station

Station.

space_object

SpaceObject.

unknown

Unknown.

eva

EVA.

flag

Flag.

deployed_science_controller

DeployedScienceController.

deployed_science_part

DeploedSciencePart.

dropped_part

DroppedPart.

deployed_ground_part

DeployedGroundPart.

class SpaceCenter.VesselSituation

The situation a vessel is in. See SpaceCenter.Vessel.situation.

docked

Vessel is docked to another.

escaping

Escaping.

flying

Vessel is flying through an atmosphere.

landed

Vessel is landed on the surface of a body.

orbiting

Vessel is orbiting a body.

pre_launch

Vessel is awaiting launch.

splashed

Vessel has splashed down in an ocean.

sub_orbital

Vessel is on a sub-orbital trajectory.

class SpaceCenter.CrewMember

Represents crew in a vessel. Can be obtained using SpaceCenter.Vessel.crew.

name: string

The crew members name.

Attribute:

Can be read or written

Return type:

string

type: SpaceCenter.CrewMemberType

The type of crew member.

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.CrewMemberType

on_mission: boolean

Whether the crew member is on a mission.

Attribute:

Read-only, cannot be set

Return type:

boolean

courage: number

The crew members courage.

Attribute:

Can be read or written

Return type:

number

stupidity: number

The crew members stupidity.

Attribute:

Can be read or written

Return type:

number

experience: number

The crew members experience.

Attribute:

Can be read or written

Return type:

number

badass: boolean

Whether the crew member is a badass.

Attribute:

Can be read or written

Return type:

boolean

veteran: boolean

Whether the crew member is a veteran.

Attribute:

Can be read or written

Return type:

boolean

trait: string

The crew member’s job.

Attribute:

Read-only, cannot be set

Return type:

string

gender: SpaceCenter.CrewMemberGender

The crew member’s gender.

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.CrewMemberGender

roster_status: SpaceCenter.RosterStatus

The crew member’s current roster status.

Attribute:

Read-only, cannot be set

Return type:

SpaceCenter.RosterStatus

suit_type: SpaceCenter.SuitType

The crew member’s suit type.

Attribute:

Can be read or written

Return type:

SpaceCenter.SuitType

career_log_flights: List

The flight IDs for each entry in the career flight log.

Attribute:

Read-only, cannot be set

Return type:

List

career_log_types: List

The type for each entry in the career flight log.

Attribute:

Read-only, cannot be set

Return type:

List

career_log_targets: List

The body name for each entry in the career flight log.

Attribute:

Read-only, cannot be set

Return type:

List

class SpaceCenter.CrewMemberType

The type of a crew member. See SpaceCenter.CrewMember.type.

applicant

An applicant for crew.

crew

Rocket crew.

tourist

A tourist.

unowned

An unowned crew member.

class SpaceCenter.CrewMemberGender

A crew member’s gender. See SpaceCenter.CrewMember.gender.

male

Male.

female

Female.

class SpaceCenter.RosterStatus

A crew member’s roster status. See SpaceCenter.CrewMember.roster_status.

available

Available.

assigned

Assigned.

dead

Dead.

missing

Missing.

class SpaceCenter.SuitType

A crew member’s suit type. See SpaceCenter.CrewMember.suit_type.

default

Default.

vintage

Vintage.

future

Future.

slim

Slim.
